MORE POWER, MORE RANGE, MORE FUN!

Horizon Electric Bike Kit

  • Free Shipping to Lower 48
  • Fits Most Bikes & Adult Trikes
  • Due to High Demand Product Ships July 8

Zoom up the hardest hills and turn heads as you show off your new super powers. The powerful 350W motor provides a top speed of 20 mph at the push of a button. Fits nearly any bike or adult trike. No Spandex required!

Make your selection below

$899
Add to your cart
FREE SHIPPING TO LOWER 48
  • $100 off your purchase when you buy 2 kits or ebikes with code 2xTheFun

Specifications

  • Speed20+ mph
  • Range25-40+ miles
  • Power350 Watts
  • Motor36 Volt Front Wheel Drive

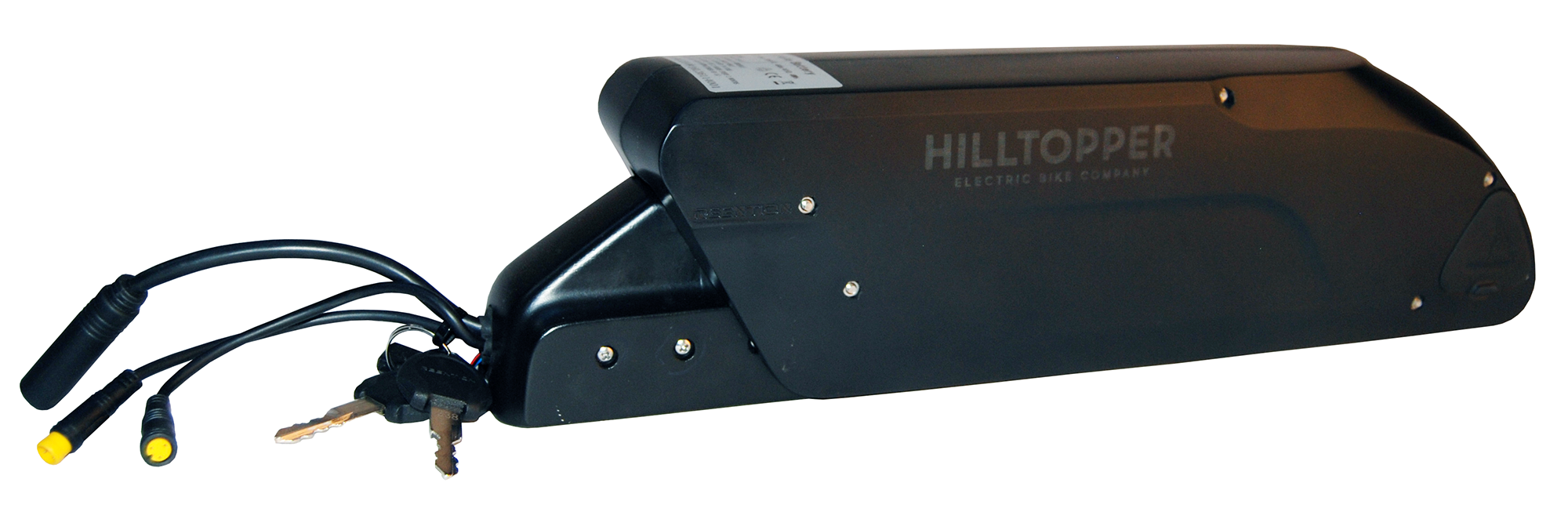

  • Battery36 Volt 11.6 Ah Lithium-Ion
  • ThrottleVariable Speed
  • Battery GaugeYes!
  • Battery LockYes!
  • Weight18 lbs
  • Free ShippingYes!

Install it like this

Your old bike is your new bike!

Convert your old bike to an electric one in just a few minutes. It's easy, quick and fun. All you need is a Hilltopper kit and a friend to race when you're done!

Obviously not bragging...

Components

Frequently asked questions about our kits

  • Electric Bike Kits
  • Range of the Battery and Speed
  • Warranty, Returns & Shipping
  • Will It Fit My Bike?

Electric Bike Kits

  • Why are Hilltopper Bikes 1/2 the price of other e-bikes on the market? Because we sell direct to you, the customer. Our mission is to create a sustainable future, two wheels at a time and we do that by making e-bikes affordable for you. We intentionally don't sell through dealers, distributors, or retailers because that way of selling means a higher price tag for you. We build our kits and bike wheels with love and care here in Seattle and sell direct to you, so you won't see the large retail markup that would be present if you were buying from a third party. That way you're always getting the best deal on your electric bike.

  • It depends on how fast you want to go, and how steep the hill.

    The 36v, 350 watt kits and bikes can go 20 mph with minimal pedaling. This is the legal limit in most of the US for e-bikes so it's enough power for most bikes. This is a great power for steeper hills, faster commutes & carrying bigger loads. It's like having two Soul Cycle instructors also pedaling for you.

    The 24v, 250 watt kits and bikes can go 15 mph with minimal pedaling on flat ground, but they perform best as a boost to your pedaling with pedaling required on hills. Perfect if you are looking for an added boost to your ride at an affordable price. Cuts your commute time by 25%, flattens out that hill by 50% & puts a smile on your face.

    The 48v, 750 watt Summit kit can go 20 mph with minimal pedaling. This is the legal limit in most of the US for e-bikes. The motor could go faster, but it is limited at 20 mph for safety and to remain street legal in the US (unlimited it could go 30+ mph). The 750 watt motor can carry large loads up steep hills and accelerates quickly. Perfect if you are looking to cruise consistently at 20 mph over varied terrain or climb absurdly steep and long hills while hauling groceries. It's more power then you might need. But its a lot of fun and gives you the piece of mind that you can accelerate out of any sticky situation.

  • All Hilltopper electric bikes and kits have a maximum speed of 20 mph. This keeps them street legal and compliant with state laws and city ordinances in the US.

    For choosing a power system, here's what to keep in mind:

    The 36v, 350 watt kits (Ranger & Horizon) can go 20 mph with minimal pedaling. This is great for steeper hills, faster commutes & carrying bigger loads.

    The 24v, 250 watt kits (Sprinter & Commuter) can go 15 mph with minimal pedaling on flat ground, but they perform best as a boost to your pedaling with pedaling required on hills. Perfect if you are looking for an added boost to your ride at an affordable price. Cuts your commute time by 25%, gives a boost up hills & puts a smile on your face.

    The 48v, 750 watt Summit kit can go 20 mph with minimal pedaling. This is the legal limit in most of the US for e-bikes. The motor could go faster, but it is limited at 20 mph for safety and to remain street legal in the US (unlimited it could go 30+ mph). Perfect if you are looking to cruise consistently at 20 mph over varied terrain or climb absurdly steep and long hills while hauling groceries. It's more power then you might need. But its a lot of fun and gives you the piece of mind that you can accelerate out of any sticky situation.

  • There are many different types of bicycles and adult tricycles in the world today, but each Hill Topper conversion kit has been carefully designed to fit as many of these models as possible. All Hill Topper wheels are designed to be compatible with both rim brakes and rims brakes.

    There are a few more factors used to confirm that the Hill Topper will fit your bike. 1) Wheel Size. 2) Hub and Fork spacing. 3) Fork Dropout Type. See FAQ Will It Fit My Bike? for more information.

  • For our conversion kits, and on some of our bikes, we offer two methods for controlling the motor manually, the GripSwitch, or an Adjustable Speed Throttle. Both serve the same purpose, but go about it differently and offer different installation options.

    The GripSwitch:

    • Easiest possible installation ever conceived. Just strap the Velcro where ever you like on your handle bars. This means it can go on the right-hand or left, top or bottom, middle or end. Many people place it to be pushed by thumb, others like to set it as a trigger under their index finger. The possibilities are nearly endless and the choice is yours.
    • Compatible with absolutely any handlebars.
    • Controlling the motor is equally simple. Since it is a button, it's just on or off. Just hold the button when you want a boost, release when you don't. We have fine tuned the motor controller to conserve energy, minimizing wasted power to keeps you rolling longer.
    • Only available with our 24V electric conversion kits and bikes.

    Adjustable Speed Throttle:

    • Controlling the motor work just like a gas pedal in a car. Push it all the way for max speed, push it just a little for lower speeds. This means that just like in a car, you are in total control of your speed, but also means the more aggressive you "drive" the less "gas" mileage you may get on a full charge.
    • Installing the throttle is a little harder than the GripSwitch, but still pretty simple. It does require that you remove your handle bar grip first.
    • When considering the Throttle option, keep in mind that it has a maximum clamp diameter of 22.2 mm. This means there can be complications installing it on drop bars for handle bars with a larger diameter.
    • Not compatible with our 24V conversion kits or electric bikes.
  • The 36 V Hilltopper electric bike conversion kit is a step up from our original systems both in tech and performance. The bigger motor offers more power while the Horizon battery give you more miles on the road and the new throttle offers a bit more control.

    Here are the basic steps you'll need to follow:

    1. Remove your bike's original front wheel.
    2. Install your new Electric Bike Wheel, being careful to ensure all of the axle hardware is in place.
    3. Unlock and remove the battery from the mount.
    4. Affix the battery mount to your bike's water bottle mount or a rear carrier, then reattach the battery.
    5. Remove your your handle bar grip. (You can choose right-hand or left, it's totally up to you.)
    6. Install the throttle on the handle bars. (It can be position any way you like, push forward, pull back, right-hand or left. It's dealer's choice.)
    7. Connect it all with the two plugs at the ends of your Cable Set.

    For more detailed instructions, check out the booklet that came with your kit or download the PDF by clicking here.

  • The 24 V Hilltopper electric bike conversion kit is our flagship model, the one that stated it all. We've refined it over the years, but the core principle remains the same; Simplicity. And that's exactly what you'll find here. No bells and whistles, just what you need, this keeps you bike clean and installation a breeze.

    There are five simple steps to installation:

    1. Remove your bike's original front wheel.
    2. Install your new Electric Bike Wheel, being careful to ensure all of the axle hardware is in place.
    3. Strap on the Battery Pack where ever you see fit.
    4. Using velcro, place the GripSwitch button on your handle bars where ever comfortable.
    5. Connect it all with the two plugs on your Cable Set.

    For more detailed instructions, check out the booklet that came with your kit or download the PDF by clicking here.

    • For all returns or warranty claims contact support@hilltopperbikes.com or 1 800 805 9053 x 2.
    • 30-day money back guarantee. Returns of undamaged conversion kits may be issued full refunds less a $50.00 restocking fee. Returns of undamaged complete bikes may be issued full refunds less a $125.00 restocking fee.
    • Warranty only applies to original owner (non-transferable).
    • 1-year standard warranty on all batteries. 2-year standard warranty on all other components.
    • Warranties can be used for an exchange of a component only once.
    • Customer pays return shipping on warrantied component inspections. Please note some battery returns may require special documentation and packaging, and these instances will encounter extra fees. This is in order to correctly comply with lithium battery shipping regulations. For all return shipping we recommend using a local shipping service like FedEx office or the UPS Store.
    • If you have a quality issue with a product please contact support to help diagnose the problem. If a product does not meet our high quality standards, then we will issue you a replacement component or fix the original at no additional cost. Replacement components will only be sent after we have received your returned component and finished an inspection to determine the cause of any problems. Hill Topper Bikes is not responsible for return shipping.
    • Do-It-Yourself modifications, normal wear, and damage due to gross negligence or abuse are not covered by the warranty.

    Return Address:

    Please mail your package in a traceable method to the address below. Include a note with your name, your order number and describing your situation and/or request.

    Hill Topper Bikes
    Technical Support Team
    920 S. Holgate St. #106
    Seattle, WA 98134
    USA

Range of the Battery and Speed

  • Sprinter battery has 12 to 16 miles of range.

    Commuter battery has 20 miles + of range.

    Ranger battery has 20 to 25+ miles of range.

    Horizon battery has 25 - 40+ miles of range.

    Summit battery has 25 - 40+ miles of range.

    Mileage rates are based on a 170 pound rider on a 30 pound bike on a flat paved surface, with no wind, using the motor and not pedaling. Your mileage may vary, though most people get more than advertised mileage. For the best possible mileage we suggest pedaling anytime the motor is engaged.



  • All Hilltopper electric bikes and kits have a maximum speed of 20 mph. This keeps them street legal and compliant with state laws and city ordinances in the US.

    For choosing a power system, here's what to keep in mind:

    The 36v, 350 watt kits (Ranger & Horizon) can go 20 mph with minimal pedaling. This is great for steeper hills, faster commutes & carrying bigger loads.

    The 24v, 250 watt kits (Sprinter & Commuter) can go 15 mph with minimal pedaling on flat ground, but they perform best as a boost to your pedaling with pedaling required on hills. Perfect if you are looking for an added boost to your ride at an affordable price. Cuts your commute time by 25%, gives a boost up hills & puts a smile on your face.

    The 48v, 750 watt Summit kit can go 20 mph with minimal pedaling. This is the legal limit in most of the US for e-bikes. The motor could go faster, but it is limited at 20 mph for safety and to remain street legal in the US (unlimited it could go 30+ mph). Perfect if you are looking to cruise consistently at 20 mph over varied terrain or climb absurdly steep and long hills while hauling groceries. It's more power then you might need. But its a lot of fun and gives you the piece of mind that you can accelerate out of any sticky situation.

  • Mileage rates are based on a 170 pound rider on a 30 pound bike on a flat paved surface, with no wind, using the motor and not pedaling. Your mileage may vary, though most people get more than advertised mileage. For the best possible mileage we suggest pedaling anytime the motor is engaged.



  • For all of our electric bikes and conversion kits we've made sure charging is easy as can be. Just a few simple steps:

    1. Grab the charger supplied with your HillTopper and plug it into the wall. For the best possible performance we recommend plugging directly into the wall, avoiding the use of extension cords and power strips whenever possible.
    2. Once the green light on the charger comes on, go ahead and plug the barrel end into the battery.
    3. When the charger is connected to the battery the light should turn from green to red to indicate that it is filling up the battery.
    4. As soon as the battery is full the light will turn back to green so you know it's done.

    That's it! Follow these steps and you can rest assured you'll be ready to roll!

Warranty, Returns & Shipping

  • Why are Hilltopper Bikes 1/2 the price of other e-bikes on the market? Because we sell direct to you, the customer. Our mission is to create a sustainable future, two wheels at a time and we do that by making e-bikes affordable for you. We intentionally don't sell through dealers, distributors, or retailers because that way of selling means a higher price tag for you. We build our kits and bike wheels with love and care here in Seattle and sell direct to you, so you won't see the large retail markup that would be present if you were buying from a third party. That way you're always getting the best deal on your electric bike.

  • Most orders ship out within 1-3 days. Orders within the contiguous 48 states should be delivered within 5-7 days by UPS ground shipping.

  • You read that right, free shipping* on all orders!

    (*Applies only to orders in the contiguous 48 states.)

  • If you are unsatisfied for any reason with any of our products you can return it for a refund up to 30 days after purchase.

    • For new, undamaged items to be returned for refund, shipping is free plus a $50 restocking fee per kit and a $100 restocking fee per bicycle. Please contact support@hilltopperbikes.com or 1 800 805 9053 x 2 to initiate this type of return.
    • Customer pays return shipping for warrantied component inspections. Please note some battery returns may require special documentation and packaging, and these instances will encounter extra fees. This is in order to correctly comply with lithium battery shipping regulations. For all return shipping we recommend using a local shipping service like FedEx office or the UPS Store.

    Return Address:

    Please mail your package in a traceable method to the address below. Include a note with your name, your order number and describing your situation and/or request.

    Hill Topper Bikes
    Technical Support Team
    920 S. Holgate St. #106
    Seattle, WA 98134
    USA

  • We stand behind the quality of our products:

    • 30 day money back guarantee on all orders. Returns of undamaged conversion kit may be issued a full refund less a $50.00 restocking fee. Returns of undamaged electric bikes may be issued a full refund less a $100.00 restocking fee. For free shipping on items to be returned for refund, please contact us.
    • Lifetime technical support. Reach out to support@hilltopperbikes.com or 1 800 805 9053 x 2 for help from our team of experts.
    • 1 year extensive warranty on all bikes and conversion kits. See warranty & return policy for details.
    • For all returns or warranty claims contact support@hilltopperbikes.com or 1 800 805 9053 x 2.
    • 30-day money back guarantee. Returns of undamaged conversion kits may be issued full refunds less a $50.00 restocking fee. Returns of undamaged complete bikes may be issued full refunds less a $125.00 restocking fee.
    • Warranty only applies to original owner (non-transferable).
    • 1-year standard warranty on all batteries. 2-year standard warranty on all other components.
    • Warranties can be used for an exchange of a component only once.
    • Customer pays return shipping on warrantied component inspections. Please note some battery returns may require special documentation and packaging, and these instances will encounter extra fees. This is in order to correctly comply with lithium battery shipping regulations. For all return shipping we recommend using a local shipping service like FedEx office or the UPS Store.
    • If you have a quality issue with a product please contact support to help diagnose the problem. If a product does not meet our high quality standards, then we will issue you a replacement component or fix the original at no additional cost. Replacement components will only be sent after we have received your returned component and finished an inspection to determine the cause of any problems. Hill Topper Bikes is not responsible for return shipping.
    • Do-It-Yourself modifications, normal wear, and damage due to gross negligence or abuse are not covered by the warranty.

    Return Address:

    Please mail your package in a traceable method to the address below. Include a note with your name, your order number and describing your situation and/or request.

    Hill Topper Bikes
    Technical Support Team
    920 S. Holgate St. #106
    Seattle, WA 98134
    USA

Will It Fit My Bike?

  • There are many different types of bicycles and adult tricycles in the world today, but each Hill Topper conversion kit has been carefully designed to fit as many of these models as possible. All Hill Topper wheels are designed to be compatible with both rim brakes and rims brakes.

    There are a few more factors used to confirm that the Hill Topper will fit your bike. 1) Wheel Size. 2) Hub and Fork spacing. 3) Fork Dropout Type. See FAQ Will It Fit My Bike? for more information.

  • The type of drop out your bike has is very important. The dropout is the place at the end of your fork where the wheel attaches to the rest of the bike.

    For the longest time there was really only one type available; the "open" or "slotted" type. This is the familiar U shape you have likely seen on most every bike you can remember. Your bike must have this type for our electric bike conversion kits to fit.

    Another type of dropout that is found on a small number of high-end bikes is the "closed" dropout. This is for use only with "thru-axle" hubs, and our e-bike motors are unfortunately not compatible.



  • Our hubs have a 100 mm(or about 3.9 inches) axle, which is standard for most bikes. To confirm that our electric bike hub will fit into the fork on your bike we need to check the spacing of "the fork." The fork is the two metal arms that hold either side of your front wheel. If there is about 3.9" (100mm) the Hill Topper should fit great!

    Since our electric bike motors tend to be a bit taller than the average bike hub, there is another fork spacing consideration to look for. Most bike hubs are only about 2-3" in diameter, but an e-bike motor can be up to 7" tall. As such, we need to ensure that the 4" spacing mentioned above does not diminish too quickly above the dropout. For the best possible fit, that 100mm/4" spacing should be maintained at least 3" above the dropout.

  • We offer all of the most common wheel sizes on the market today, including; 700c/29", 26", 24", and 20" wheels.

    You can find your wheel size printed on the side of the tire on your existing wheel.
